Elbow Connector | b.safe
Price range: €106.92 through €116.68 ex. VAT
Description
The Elbow Connector ensures secure and efficient connections in laboratories and industrial environments. Crafted from static dissipative PE-EX, it enhances safety while maintaining durability.

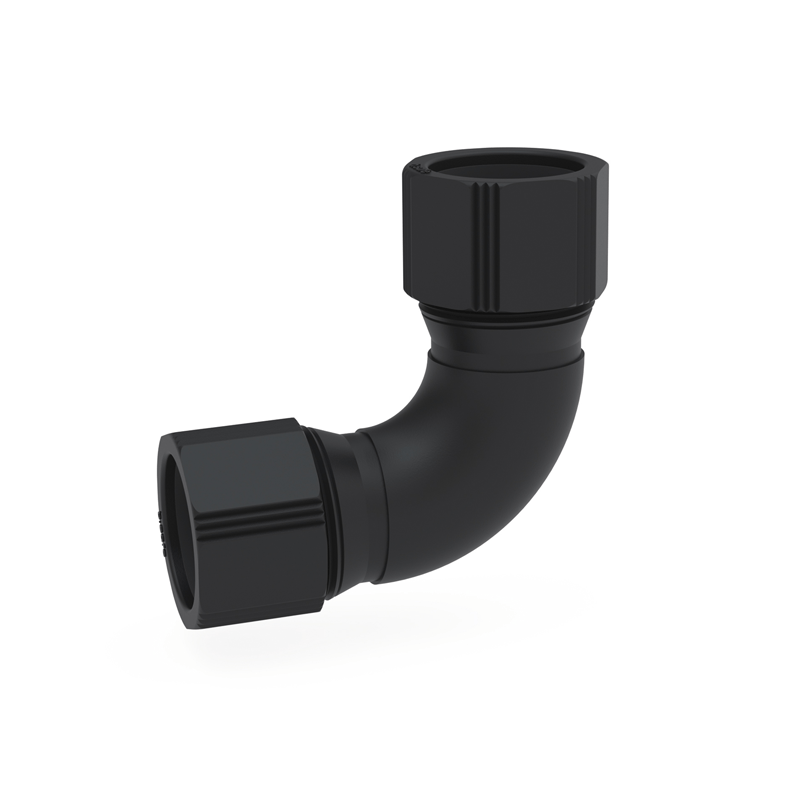

Designed for HPLC, UPLC, ÄKTA, and PE-EX systems, this connector offers a clamp connection for securing Waste Pipes with an outer diameter of 32 mm. Additionally, the second connection provides three options, allowing flexibility in various setups:
- Clamp connection for waste pipes

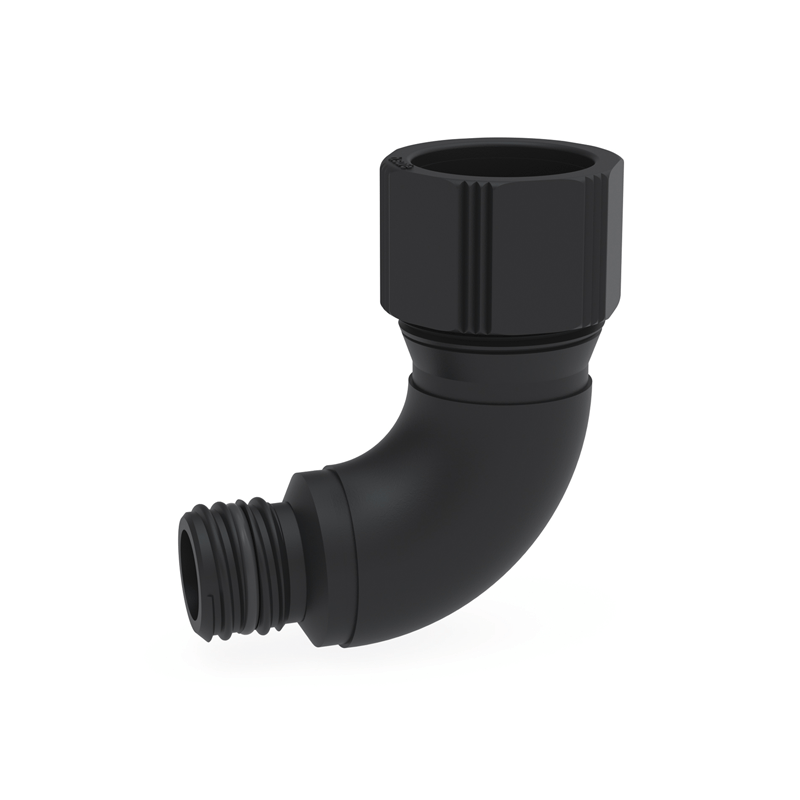

- Male thread GL25 for transitioning to flexible waste tubes

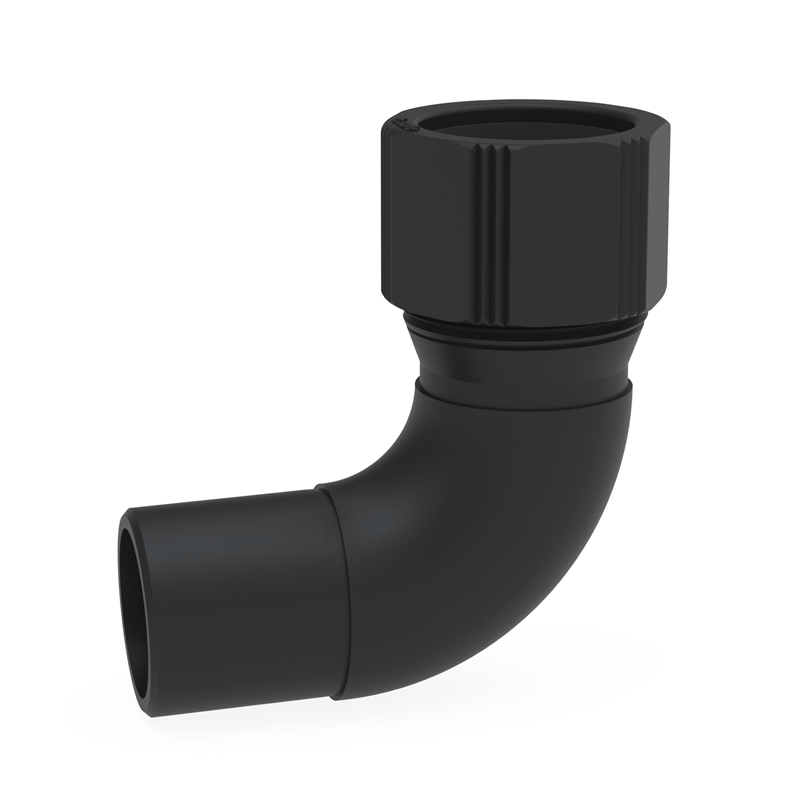

- End piece with an outer diameter of 32 mm for transitioning to a clamp connection
Moreover, each clamp connection includes a lock nut in PE-EX, two conical sealing rings in PTFE-EX, and an O-ring in EPDM, ensuring a leak-proof and secure fit.

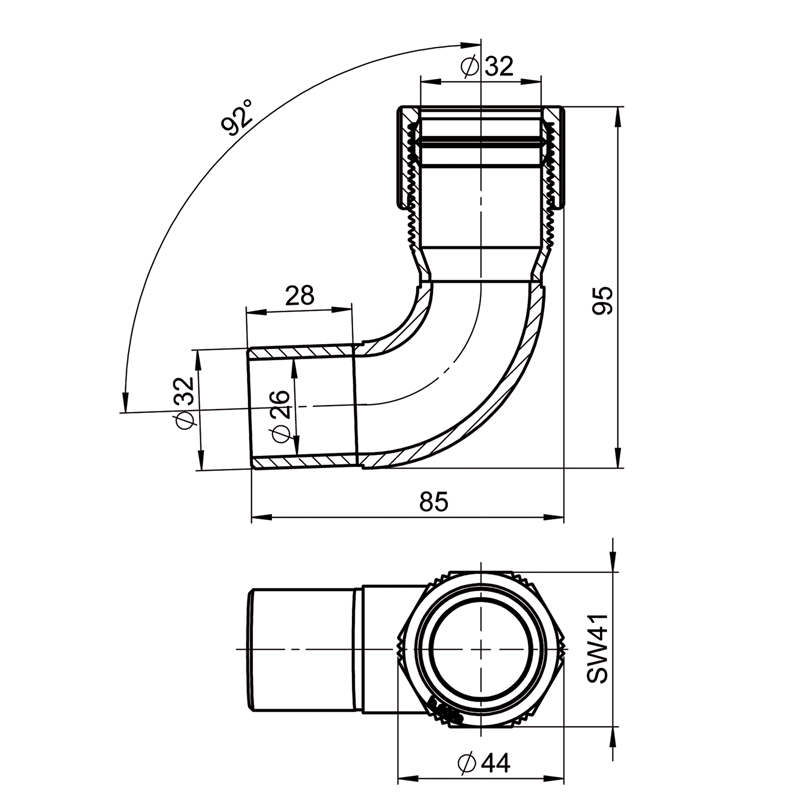

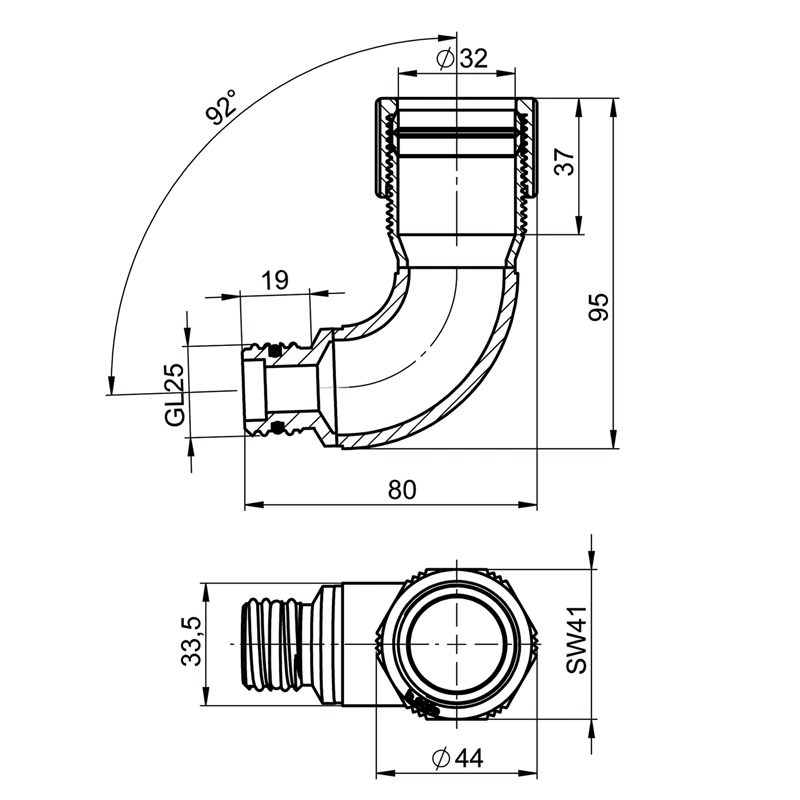

Furthermore, it provides excellent chemical resistance (++ very good) and conductivity (1.000 kOhm). Designed to withstand temperatures ranging from -50°C to +80°C, it remains reliable in various conditions. In addition, its compact dimensions (80 x 95 mm) allow for an efficient and space-saving installation.
Additional information
| Chemical resistance: | ++ very good |
|---|---|
| Temperature resistance: | from -50°C to +80°C |
| Conductivity: | 1.000 kOhm |
| Material: | PE-EX, PTFE-EX |
| Connection 1 | clamp connection Ø 32 mm |
| Shape | Elbow tube |
