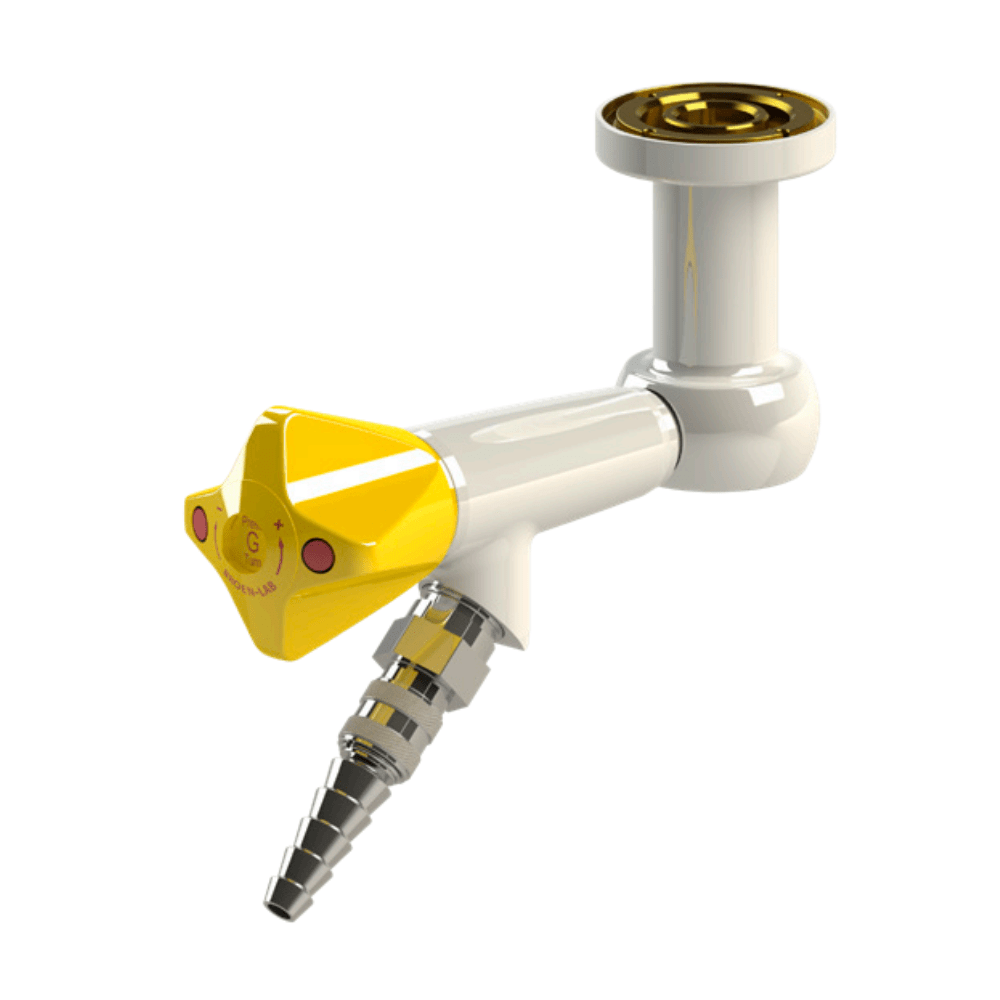

Suspended Fittings with 45° valves | BROEN
Price range: €137.25 through €566.50 ex. VAT
Description
The Suspended Fittings with 45° valves by BROEN provide both efficiency and safety for laboratory environments. To start, their 45° valve design ensures optimal control and ease of use, making precise adjustments simple. Additionally, the quick-release coupling allows for fast and secure connections, making these fittings adaptable to various applications.
Moreover, durability is a key feature of these fittings. Constructed with high-quality materials, they deliver long-lasting performance, even under demanding conditions. Furthermore, the BROEN-LAB POLYCOAT powder coating enhances resistance against chemicals, UV light, and heat, ensuring reliability in laboratory settings.
Most importantly, these fittings meet rigorous industry standards. With a maximum working pressure of 7 bar and temperature limits from 5°C to 60°C, they provide dependable functionality for modern laboratories requiring precision and safety.
Additional information
| Weight | 1 kg |
|---|---|
| Model | 2530 220 1031-52B, 2530 221 1031-52B, 2530 168 1031-52B, 2530 222 1031-52B, 2530 220 1032-52B, 2530 221 1032-52B, 2530 168 1032-52B, 2530 222 1032-52B, 2530 223 1031-52B, 2530 224 1031-52B, 2530 225 1031-52B, 2530 226 1031-52B, 2530 223 1032-52B, 2530 224 1032-52B, 2530 225 1032-52B, 2530 226 1032-52B |
| Media type | Natural Gas, Liquefied petroleum gas |
| Mounting | Suspended |
| Handle | Polypropylene with media indication according to EN13792 |
| Hose nozzle | Metal, fixed |
| Headwork | Ceramic press/turn |
| Opening/Closing function | 90° |
| Max. working pressure | 7 bar / 102 psi |
| Allowable trest pressure after installation | 10 bar wihout function of the valve |
| Metals with media contact | Brass, NBR (rubber hose) |
| Sealing with media contact | Nitrile (NBR) |
| Lubricant with media contact | Mineral oil based |
| Ceramics with media contact | AI2O3 96% |
| Number of valves | 1-valve, 2-valve 90°, 2-valve 180°, 4-valve |
| Nozzle Type | Fixed nozzle, With quick release coupling |
