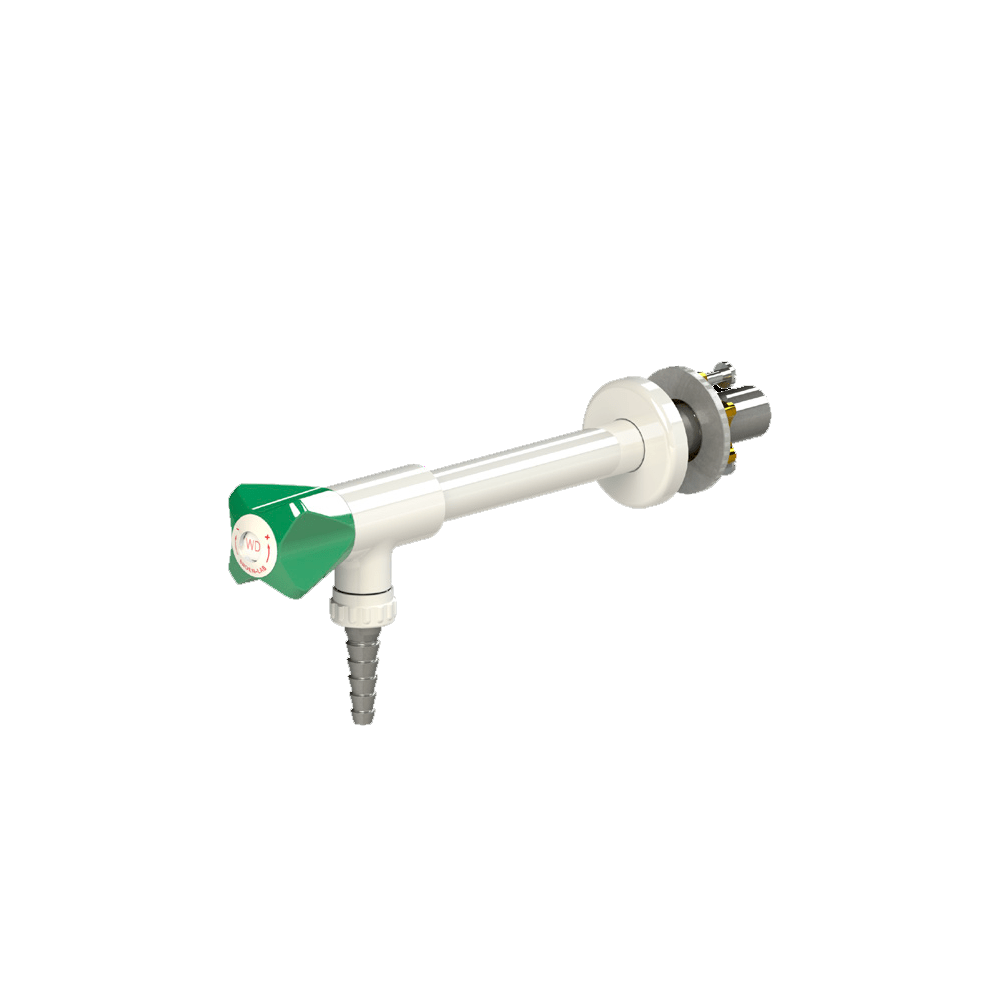

Wall Mounted Fitting In Stainless Steel | BROEN
Price range: €217.00 through €226.50 ex. VAT
Description
BROEN-LAB UniFlex™ Wall Mounted Fitting ensures secure and efficient connections for gases and liquids in laboratories. First, its stainless steel construction resists corrosion, ensuring long-term durability.
Moreover, the wall-mounted design enhances accessibility while optimizing space for smooth operation. Additionally, the BALLOFIX® ball valve enables local shut-off and pre-setting for experimental applications.
Furthermore, the BROEN-LAB POLYCOAT powder coating offers strong resistance against chemicals, UV fading, and heat, ensuring reliability in demanding conditions.
Most importantly, the UniFlex™ system supports multiple connection methods without requiring valve replacement. As a result, it reduces total installed costs while increasing efficiency for users.
Additional information
| Weight | 0.9 kg |
|---|---|
| Model | 2533 030 1003, 2533 124 1003, 2533 030 1036, 2533 124 1036. 2533 029 1003, 2533 125 1003, 2533 029 1036, 2533 125 1036 |
| Media type | Distilled water, Deionized cold water |
| Handle | Polypropylene |
| Media indication | according to EN13792 |
| Mounting | Wall |
| Headwork | Diaphragm type |
| Opening/Closing function | 1 1/2 x 360° |
| Max. working pressure | 10 bar / 147 psi at 20°C |
| Test pressure | 1 x working pressure |
| Weight | 0.9 |
| Diaphragm with media contact | PTFE |
| Rubber with media contact | EPDM |
| Metals with media contact | Stainless Steel, AISI 316 |
| Spout Length | S150mm, S200mm |
| Connection type | With removable nozzle, With G3/4 |
